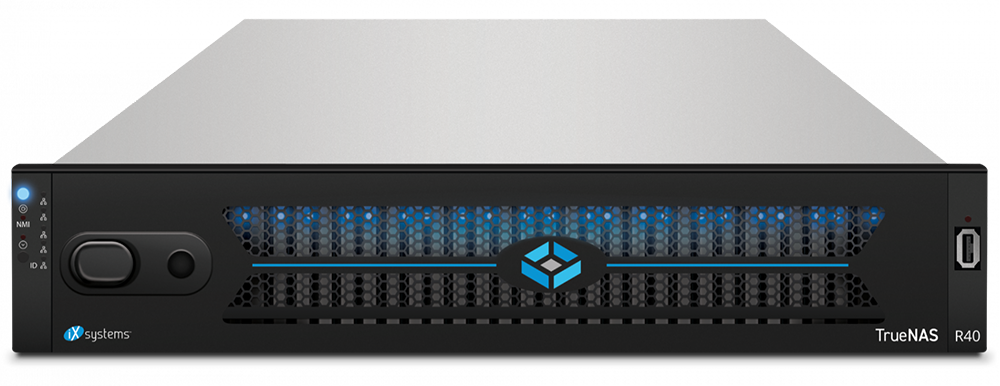

iXsystems TrueNAS R40
High-Density Unified Storage Appliances


iXsystems TrueNAS R40


iXsystems Products
TrueNAS R40
#NAS-R40
Contact us for pricing!

Click here to jump to more pricing!

Overview:

The TrueNAS R-Series combines the powerful features of ZFS with value-oriented, single controller hardware to deliver the best value storage in the industry. Available in all-flash and hybrid models, these systems feature excellent density and price-performance with specs ranging from 10 GbE to 100 GbE and up to 16 cores and 192 GB of RAM. Simplify your data management with powerful OpenZFS data management features including data protection, snapshots, replication, scrubbing, data reduction, and security. Integrating TrueNAS into your workload is easy with support for block, file, and object storage protocols as well as integrated support for all major hypervisors and cloud sync services. All TrueNAS systems are fully compatible and allow secure data replication and migration between each other.

TrueNAS Chart

Developed and supported by iXsystems, the TrueNAS R-Series is available in three editions: CORE, Enterprise, and SCALE. All TrueNAS systems are fully compatible and allow secure data replication and migration between each other. The TrueNAS Enterprise version is available with Bronze or Silver Enterprise support.

With the TrueNAS R-Series, iXsystems integrates TrueNAS with value-oriented, single-controller hardware that has configurable performance. The Open Source economics of TrueNAS provides the best value storage in the industry and the R-Series has excellent price-performance with systems ranging from 10 GbE to 100 GbE with up to 16 cores and 192 GB of RAM.

Features:

Open Source Economics

The TrueNAS R-Series delivers the economic advantages of Open Source software on an industry standard x86 platform. The R-Series supports CORE, Enterprise, or SCALE and can be repurposed with any other software. Low risk and great value!

Support the TrueNAS Project

The TrueNAS Community is run by a team of dedicated engineers employed by iXsystems. Purchasing a TrueNAS R-Series system contributes to the ongoing operation, development, and stability of the TrueNAS Project

ZFS System Optimized for TrueNAS

While TrueNAS works with a wide range of x86 based hardware, there are significant performance and operational benefits from selecting a balanced platform with best-in-class components like cache devices. The R-Series is designed with many price-performance options ranging from 10 GbE to 100 GbE.

Built for Professionals

Building a NAS from the latest components requires research and testing. iXsystems builds each system and can even set up your storage pools. Your TrueNAS R-Series also includes a 3-Year warranty for software and hardware as well as a license for graphical enclosure management.

Rich TrueNAS Feature Set and more...

NFS, SMB, AFP (Apple), S3, and iSCSI services

  • All flash, all HDD, fusion, and hybrid pools
  • Integrated Jails, VMs, Plugins
  • M.2 NVMe flash boot drive and flash accelerators
  • Hot swap drives with tool-less, front-loading bays
  • Redundant, efficient power supplies and fans

Easy to use Management Interfaces

TrueNAS includes many management tools and interfaces including a modern Web UI, REST APIs, and a powerful CLI. Active Directory, LDAP, and twofactor authentication are also available. TrueCommand provides single-pane-of-glass management for many TrueNAS systems and includes advanced reporting, alerts, analytics, auditing, and RBAC.

Specifications:

TrueNAS R10 TrueNAS R20 TrueNAS R40 TrueNAS R50
Rack Space 1U 2U-10U 2U-6U 4U-12U
Controllers Single Single Single Single
Drive Bays 16 x 2.5" 7mm 12 x 3.5", 2 x 2.5" 48 x 2.5" 7mm 48 x 3.5", 4 x 2.5"
CPU per Controller 6 - 10 Cores 6 -16 Cores 6 - 16 Cores 6 - 16 Cores
DRAM per Controller 32 GB - 96 GB 32 GB - 192 GB 64 GB - 192 GB 64 GB - 192 GB
Max Ethernet Speed 2x 100 GbE 2x 100 GbE 2x 100 GbE 2x 100 GbE
Fibre Channel (option) 2 x 32 Gb 2 x 32 Gb 2 x 32 Gb 2 x 32 Gb
Expansion Shelves Supported 0 2 2 2
Storage All-Flash Hybrid All-Flash Hybrid
Max Raw Capacity 120 TB 1.5 PB 720 TB 2 PB
Max Effective Capacity 400 TB 4 PB 2 PB 5 PB
Read & Write Cache 2 x 1.6 TB SATA SSD 3 x 3.2 TB SSD
Performance Up to 500K IOPS and 10 GB/s. Varies based on configuration. Please contact us.

Documentation:

Download the TrueNAS R-Series Datasheet (PDF).
